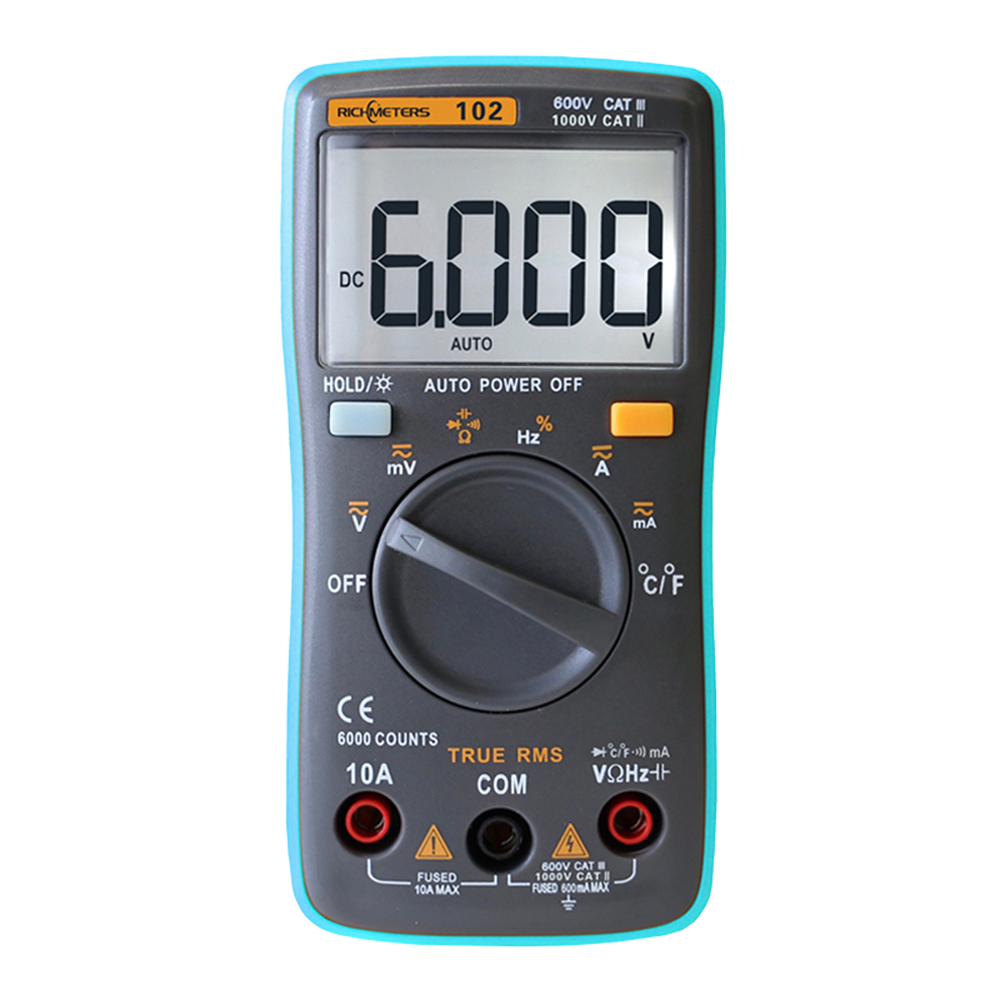

RM102
Working environment: 0-40℃
Relative humidity: <80%
Supply power: 3V (1.5V battery * 2) (Not included)
DC voltage: 600mV/6V/60V/600V/1000V
AC voltage: 6V/60V/600V/700V
DC current: 600μA/6000μA/60mA/600mA/10A
AC current: 600μA/6000μA/60mA/600mA/10A
Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Capacitance: 10nF/100nF/1μF/10μF/100μF/1000μF/10000μF
Temperature: -20~1000°C / -4~1832°F(only for RM102)
QTY/CTN:100PCS
CTN SIZE:52.5X49X35.5CM
G.W/N.W:25/23KGS
Single Color Box Size/Weight:17×9.7×4.7CM/0.23KG

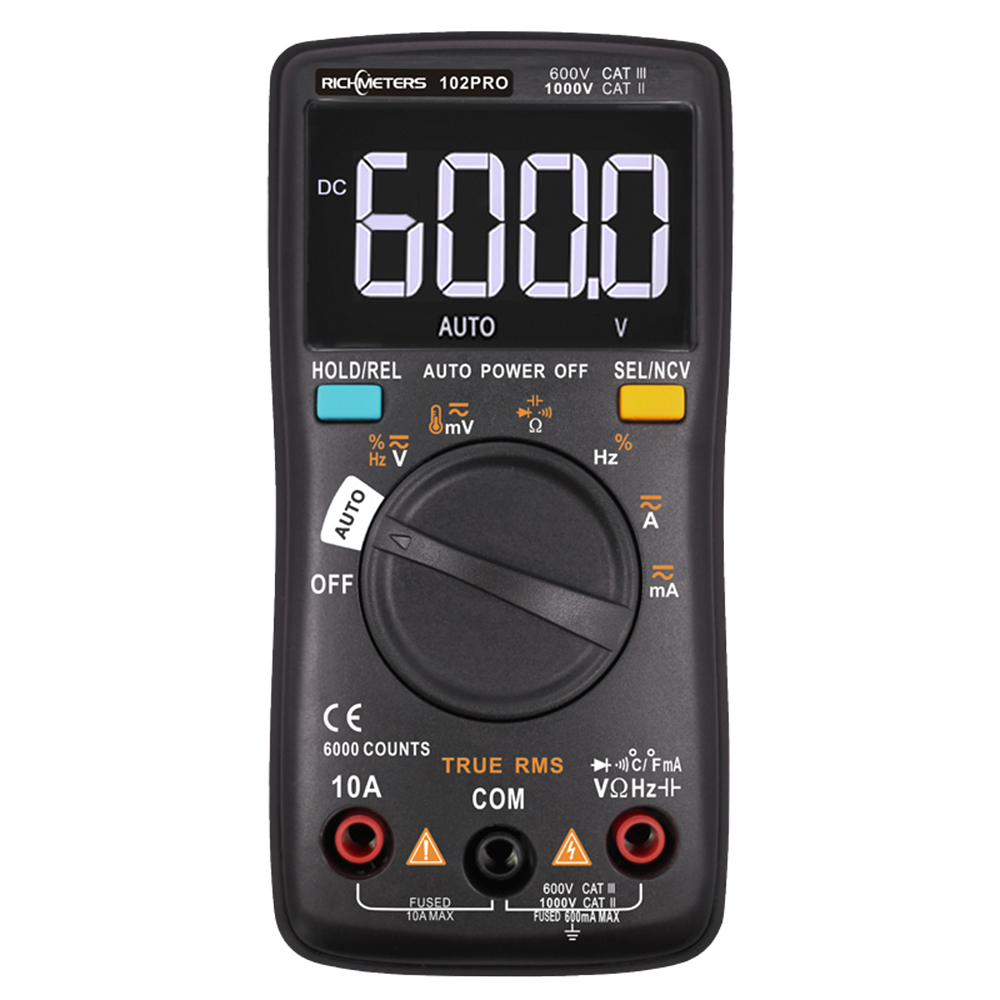

RM102Pro
DC Voltage: 60.00mV/600.0mV/6.000V/60.00V/600.0V/1000V
AC Voltage: 60.00mV/600.0mV/6.000V/60.00V/600.0V/750V
DC/AC Current: 60mA/600mA/6A/10A
Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Frequency: 99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz
Capacitance: 6nF/60nF/600nF/6μF/60μF/600μF/6mF/100mF
Temperature: (-20~1000)℃ 1℃/(-4~1832)℉
Duty Cycle: 1%~99% Diode/Continuity
QTY/CTN:100PCS
CTN SIZE:52.5X49X35.5CM
G.W/N.W:25/23KGS
Single Color Box Size/Weight:17×9.7×4.7CM/0.25KG
