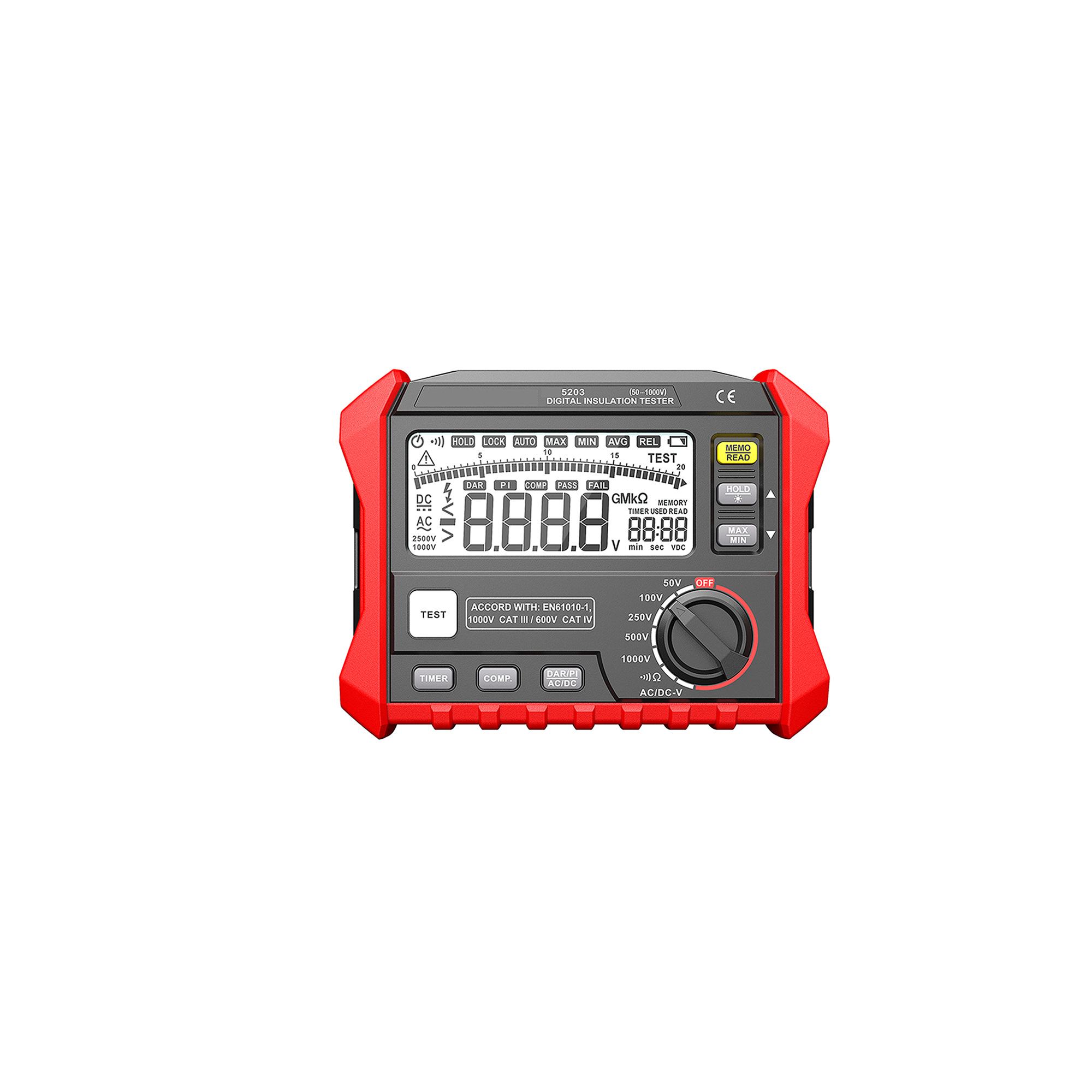

| SPECIFICATIONS | FEATURE | GENERAL | |
|---|---|---|---|
| Source Output Voltage | Measuring Range | Auto Calculate PI and DAR | Power Supply |
| 50V(0 %~+20%) | 0.01MΩ~50MΩ±(3%+5) | Store /Load Function | 6x LR14 batteries |
| 100V( 0%~+20%) | 0.01MΩ~100MΩ±(3%+5) | Compare function | Product Size |
| 250V( 0%~+20%) | 0.01MΩ~250MΩ±(3%+5) | Auto discharge for capacitive load | 180mm x 140mm x 65mm |
| 500V( 0%~+20%) | 0.01MΩ~500MΩ±(3%+5) | Timer Function for insulation test | Product Weight |
| 1.00GΩ~5.00GΩ±(5%+0.1GΩ) | Lock function for insulation test | Approx. 950g | |
| 1000V( 0%~+20%) | 5.00GΩ~10.00GΩ±(10%+0.2GΩ) | Low Battery Indication | Safety Rating |
| Short Circuit Current | Approx. 2mA | DCV and ACV Test | EN61010-1 |
| DC Voltage Test | 0.1~1000V±0.5% | Continuity test | EN61557-1 |
| AC Voltage Test | 0.1~750V±1% | Auto power Off | EN61326-1 |
| Continuity Test | 0.01Ω~200Ω±0.5% | Digital and analog display | CAT.IV 600V |
| CAT.III 1000V |
QTY/CTN:5PCS
CTN SIZE:47X35X29CM
G.W/N.W:9.5/8.5KGS
