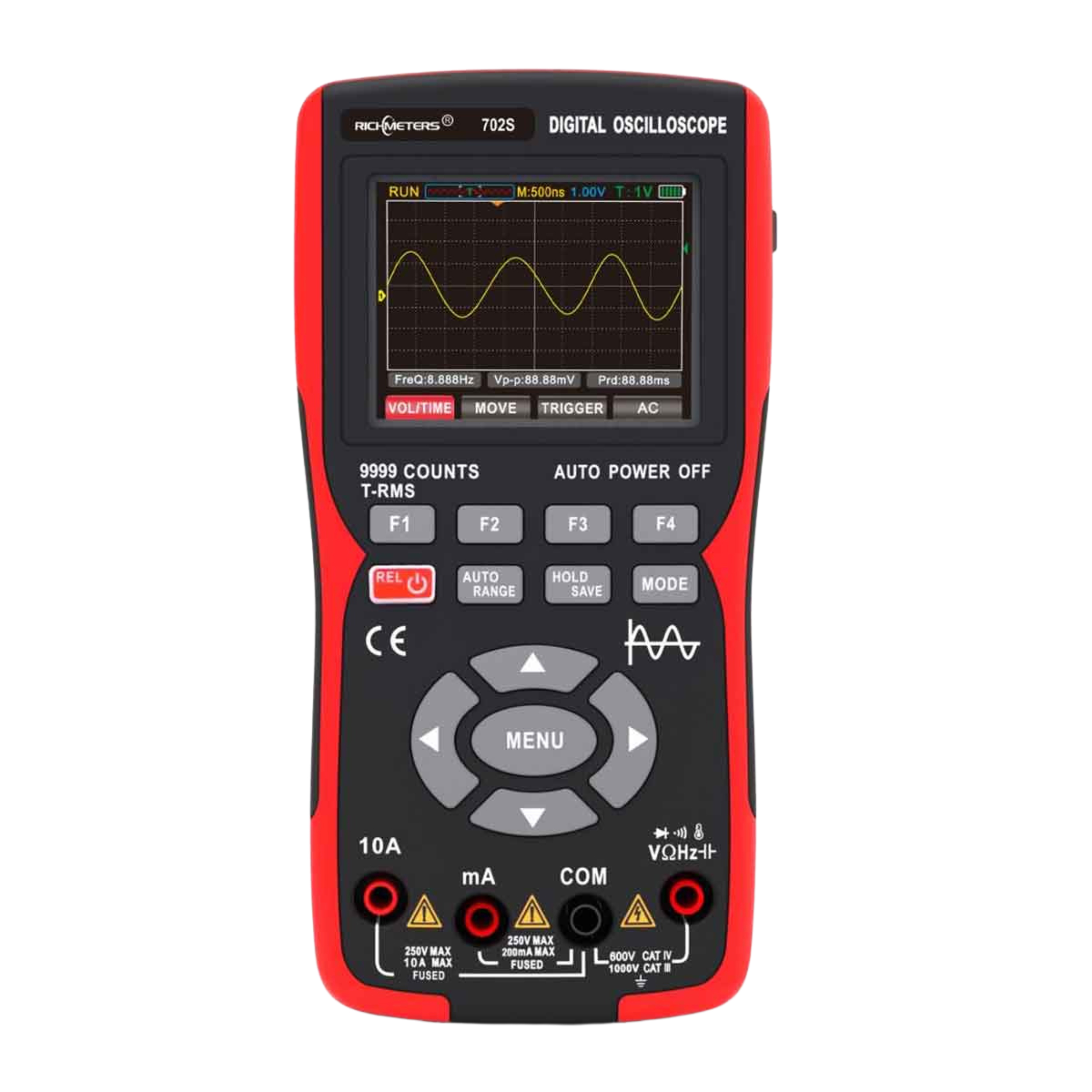

RM702S
DC Voltage: 9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V
AC Voltage: 9.999mV/99.99mV/999.9mV/9.999V/99.99V/750.0V
DC/AC Current: 9.999A/999.9mA/99.99mA/9999μA
Resistance: 99.99Ω/999.9Ω /9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ/99.99MΩ
Capacitance: 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF/99.99mF
Frequency(Measures only to 100kHz under the ACV setting): 99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz
Temperature: (-20~1000)℃ 1℃/(-4~1832)℉
Diode/Continuity
Bandwidth:10MHZ
Sampling:Sampling method:real-time sampling; real-time sample rate:48MSa/s
Channels:1
QTY/CTN:50PCS
CTN SIZE:68.5X45X23CM
G.W/N.W:23/21KGS

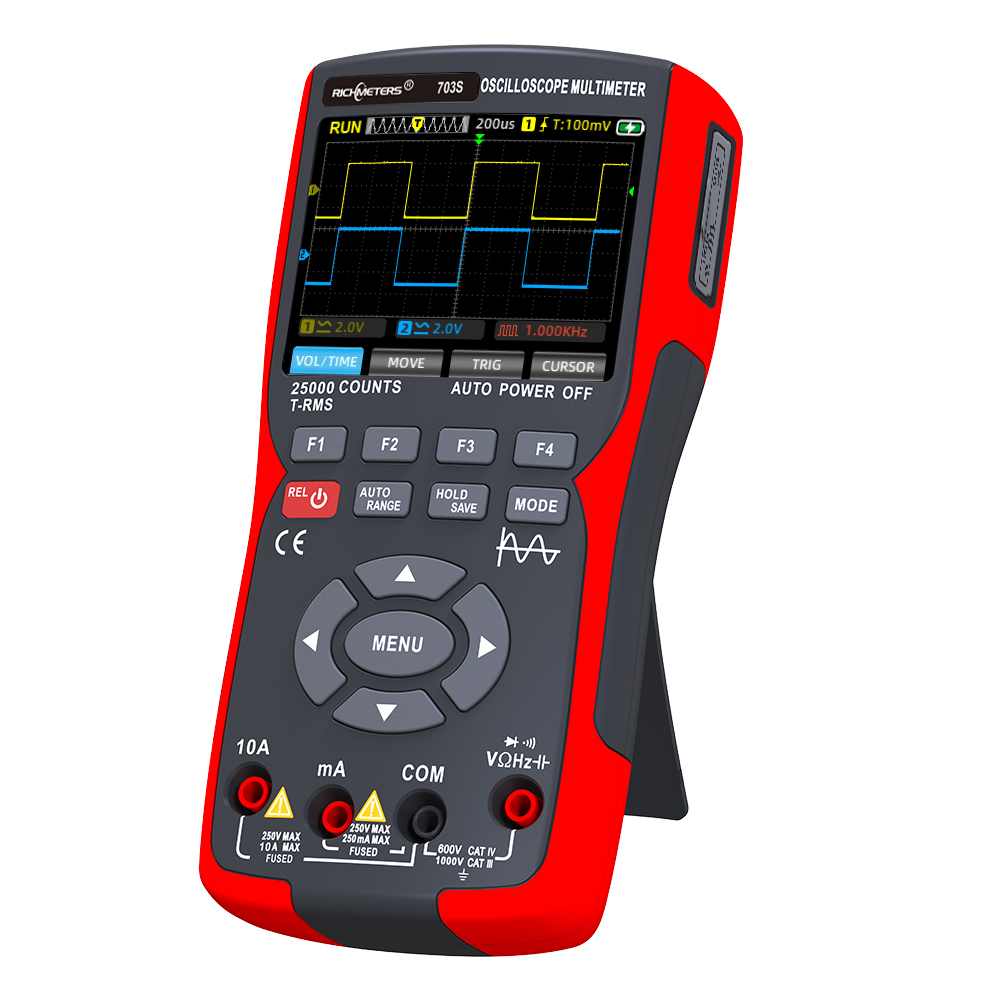

RM703S
DC Voltage: 1000.0mV/250.00V/25.000V/2.5000V/250.00mV/25.00mV
AC Voltage: 750.0V/250.00V/25.000V/2.5000V/250.00mV/25.00mV
DC/AC Current: 10.000A/2.5000A/25.000mA/250.00μA
Resistance: 250.00Ω/2 .5000kΩ/25 .000kΩ/250 .00kΩ/2 .5000MΩ/25 .000MΩ/250 .0MΩ
Capacitance: 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF/99.99mF
Diode/Continuity
Bandwidth:50MHZ
Sampling:Sampling method:real-time sampling; real-time sample rate:280MSa/s
Channels:2
QTY/CTN:50PCS
CTN SIZE:68.5X45X23CM
G.W/N.W:23/21KGS
