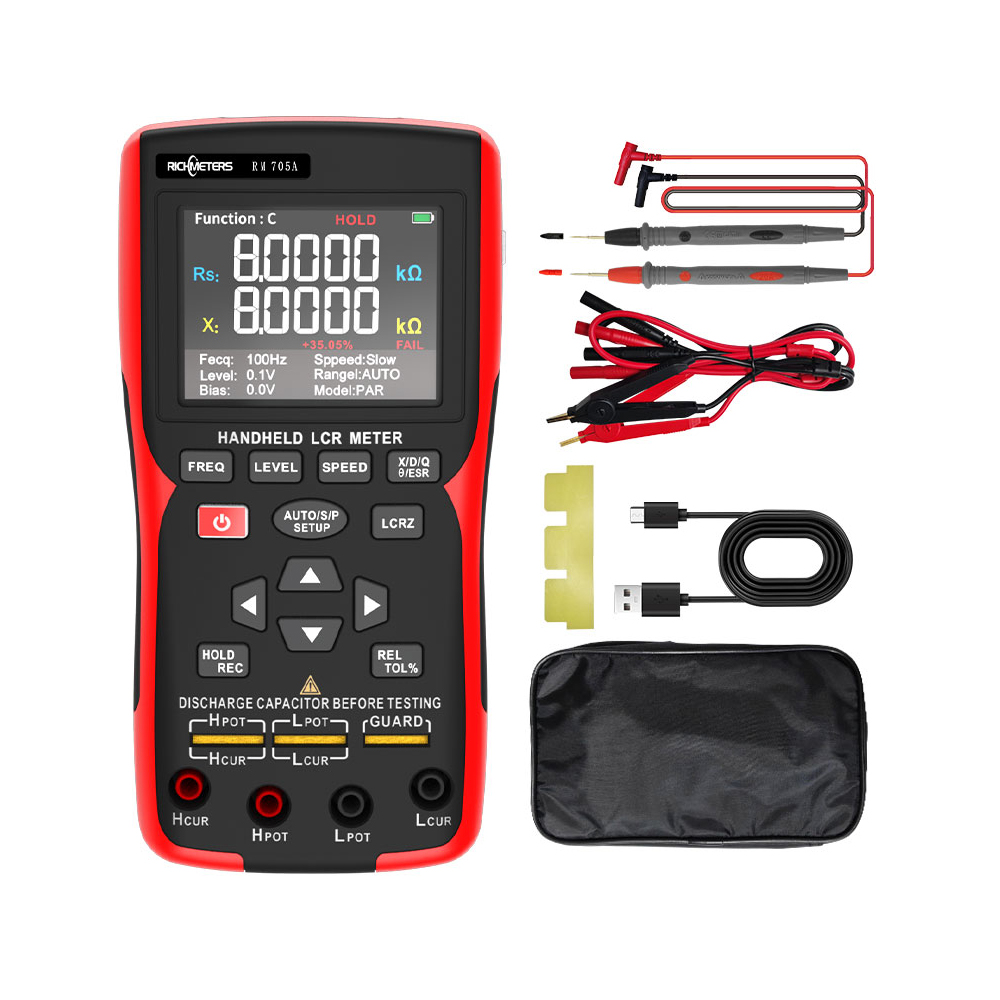

RM705A
Measuring function：Automatic、resistance、capacitor、inductance, impedance、electrolytic capacitor
Main Parameters：L, C, R,Z Subparameters：X, D, Q, 0, ESR Equivalent mode：Series, parallel
Inductive range：0~100H
Capacitance range：0~100000uF
Resistance range：0~10 mΩ
Test frequency：100Hz,120Hz,1KHz,10KHz,100KHz
Test level：0.1V,0.3V,0.6V
Highest accuracy：0.3%
Measuring speed：1 second/time,2 seconds/time, 4 seconds/time Output impedance：100Ω
QTY/CTN:30PCS
CTN SIZE:68X48X21.5CM
G.W/N.W:19/18KGS

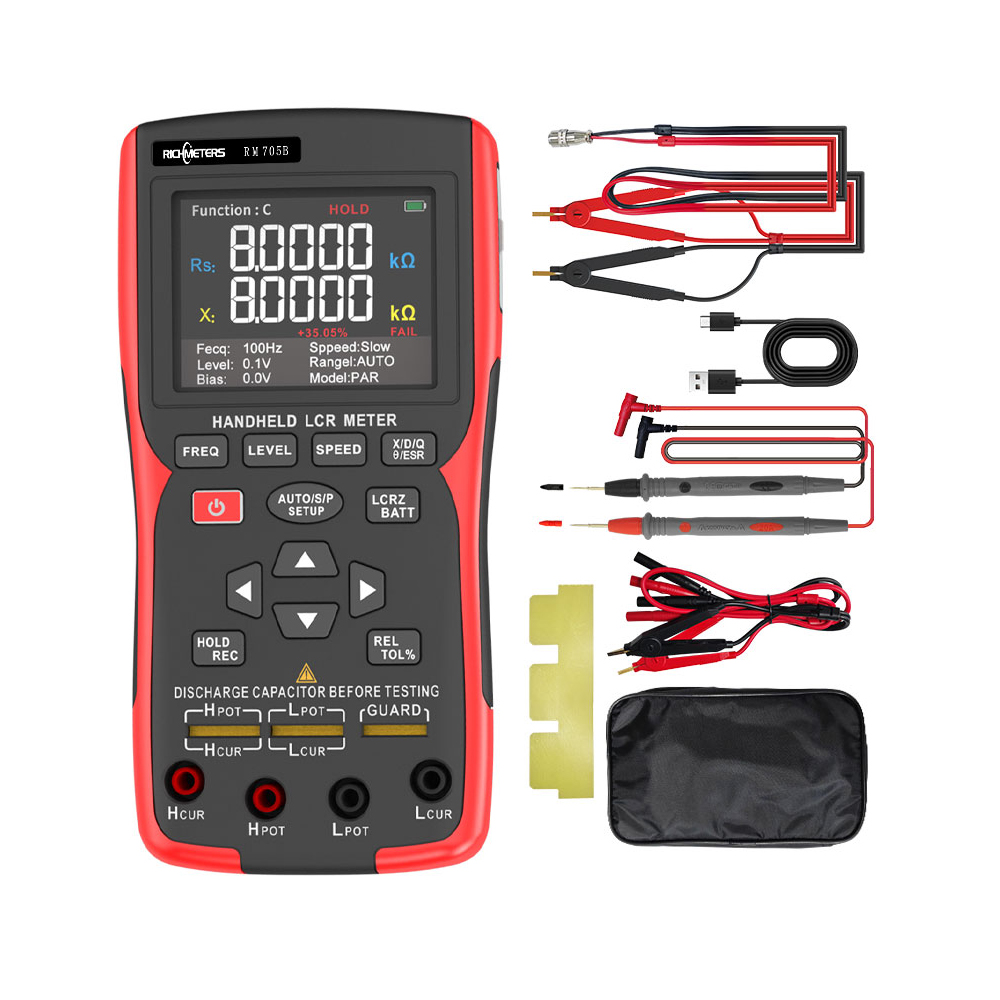

RM705B
Measuring function：Automatic、resistance、capacitor、inductance, impedance、electrolytic capacitor
Main Parameters：L, C, R,Z
Subparameters：X, D, Q, 0, ESR
Equivalent mode：Series, parallel
Inductive range：0~100H
Capacitance range：0~100000uF
Resistance range：0~10 mΩ
Test frequency：100Hz,120Hz,1KHz,10KHz,100KHz
Test level：0.1V,0.3V,0.6V
Highest accuracy：0.3%
Measuring speed：1 second/time,2 seconds/time, 4 seconds/time Output impedance：100Ω
QTY/CTN:30PCS
CTN SIZE:68X48X21.5CM
G.W/N.W:19/18KGS
